Adjustable Voltage Oil Immersed Transformer 6.3-10KV 250-630kVA 3 Phase Multi Winding

Product Categories

35 KV Power Transformer [40]
66KV Power Transformer [1]
Oil Immersed Transformer [94]
110KV-220KV Power Transformer [1]
Dry Type Transformer [55]
Compact Substation Transformer [26]
Three Phase Pad Mounted Transformer [48]
Power Transformer [3]
Single Phase Pad Mounted Transformer [36]
Single Phase Pole Mounted Transformer [33]
Box Type Substation [14]

Hunan Hentg Power Electric Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Adjustable Voltage Oil Immersed Transformer 6.3-10KV 250-630kVA 3 Phase Multi Winding

Name: Adjustable Voltage Oil Immersed Transformer 6310KV 250630kVA 3 Phase Multi Winding
Brand: HENTG Power
Price: 1 USD

China Adjustable Voltage Oil Immersed Transformer 6.3-10KV 250-630kVA 3 Phase Multi Winding wholesale

Place of Origin : China

Brand Name : HENTG Power

Model Number : S13

Certification : CE

MOQ : 1

Frequency : 50Hz, 60Hz

Coil Number : Three Windings, Multi Winding, Two Windings, Single Winding

application : distribution system

Coil Structure : fully sealed construction

Output Voltage : 415V, 110V, 220V, 380V, 400V , 440V

Input Voltage : 10.5kV, 3kV, 12.47kV, 6.6kV

Type : Oil-Immersed Transformer, Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transformer

Contact Now

Adjustable Voltage Oil Immersed Transformer 6.3-20KV 250-630kVA 3 Phase Multi Winding

Product Attributes

Attribute	Value
Frequency	50Hz, 60Hz
Coil Number	Three Windings, Multi Winding, Two Windings, Single Winding
Application	Distribution system
Coil Structure	Fully sealed construction
Output Voltage	415V, 110V, 220V, 380V, 400V, 440V
Input Voltage	10.5kV, 3kV, 12.47kV, 6.6kV
Type	Oil-Immersed Transformer, Isolation Transformer, Voltage Regulator Transformer, AUTOTRANSFORMER, Field Adjustable Transformer, Dual Winding Transformer

Adjustable Voltage Oil Immersed Transformer 6.3-10KV 250-630kVA 3 Phase Multi Winding

Technical Specifications

Rated capacity (KVA)	Vector Group	Voltage Combination	No-load loss	Load loss	Impedance
30	Yyn0 / Dyn11	10/6.3/6	65	455/430	4.0
50			80	655/625
63			90	785/745
80			105	945/900
100			120	1140/1080
125			135	1360/1295
160			160	1665/1585
200			190	1970/1870
250			230	2300/2195
315			270	2760/2630
400			330	3250/3095
500			385	3900/3710
630			460	4460/4460	4.5

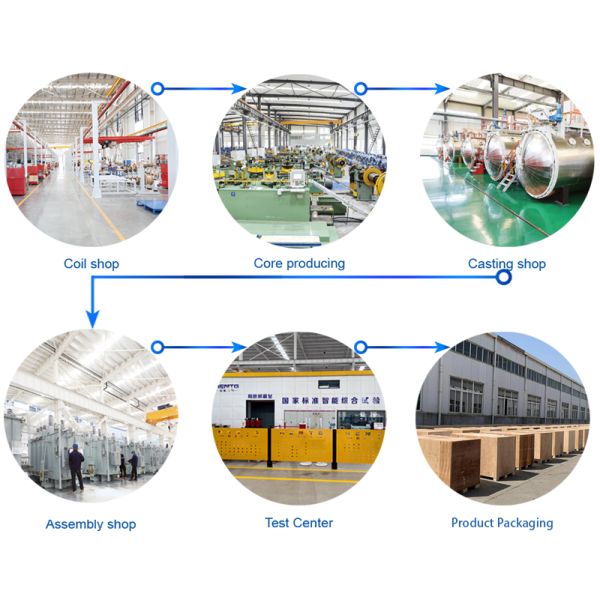

Production Process

Adjustable Voltage Oil Immersed Transformer 6.3-10KV 250-630kVA 3 Phase Multi Winding

We supply a full range of oil-immersed distribution transformers from 30KVA to 2500KVA, featuring high-grade silicon steel and oxygen-free copper windings.

Customization & Fast Delivery

Feature: Customizable voltage, tap range, enclosure color, protection grade (IP54/IP65), etc.

Factory-direct manufacturing with high efficiency and stock availability; delivery within 15-20 days for standard orders.

Meet urgent project timelines, reduce lead time, and strengthen supply chain control.

Why Choose HENTG Power?

Own Factory, Direct Manufacturer
24h Quick Quotation
Customization Available
Over 60 Countries Exported
Engineering Support Available

Product Tags:

Adjustable Voltage Oil Immersed Transformer

Multi Winding Oil Immersed Transformer

Adjustable Voltage Oil Immersed Transformer 6.3-10KV 250-630kVA 3 Phase Multi Winding Images
